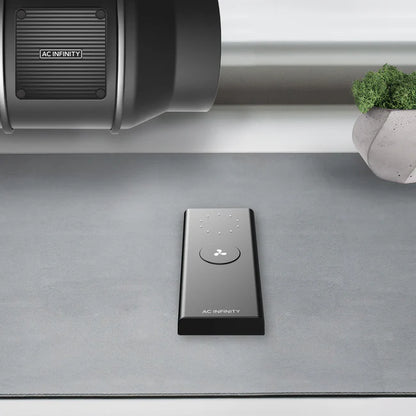

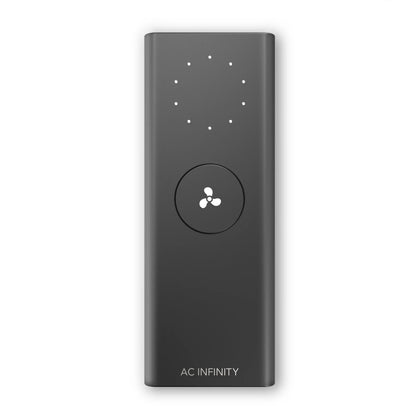

AC Infinity Controller 63, Wireless Remote Fan Controller

AC Infinity Controller 63, Wireless Remote Fan Controller is designed for controlling ventilation systems in grow rooms, greenhouses, and other environments. It provides easy, precise control over fan speed, temperature, and humidity levels, optimizing airflow and creating the ideal conditions for plant growth. The controller features a user-friendly interface and can be mounted remotely for convenience. Compatible with various AC Infinity fans, this controller helps ensure energy-efficient operation and improved environmental control.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CONTROLLER 63
Product Model	CTR63A
UPC Code	819137021730

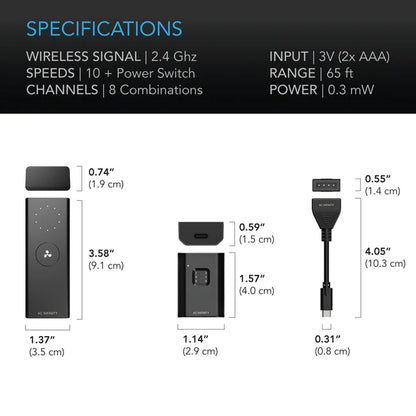

Product and Mounting Dimensions
Controller Dimensions	3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
Receiver Dimensions	1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
Mounting Hole Size	Ø 0.25 in. (Ø 6.5 mm)
Product Performance and Technical Specs

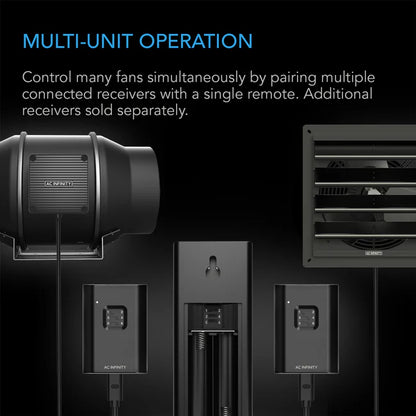

Maximum Fans Controlled	1
Wireless Signal	2.4 Ghz
Signal Range	65.62 ft. (20 m)

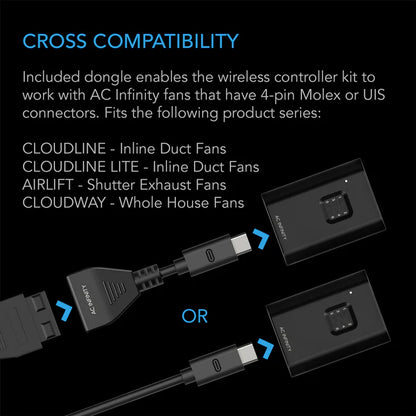

Included Adapter	4-Pin Molex to UIS
Adapter Length	4.07 in. (10.3 cm)
Operating Humidity	35 to 85% RH
FCC Cert. (Whole Product)	PDF
Speed Controller
Operating Voltage	2 to 3.6V
Max Current Supported	0.1 mA
Power	0.3 mW
Receiver
Operating Voltage	8 to 15V
Max Current Supported	10 mA
Power	100mW
Product Manual
Product Manual	PDF
