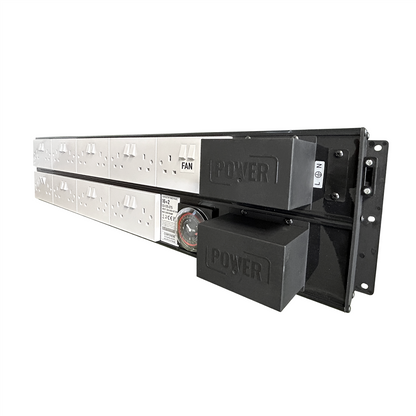

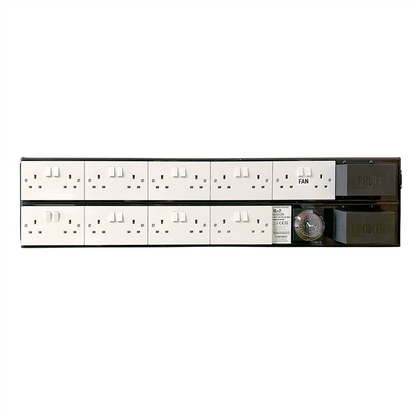

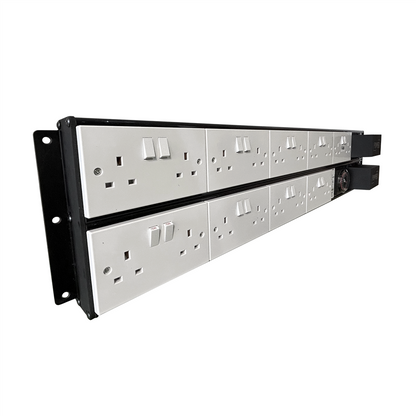

16+2 Contactor Timer Panel

The 16+2 Contactor Timer Panel enables scheduled operation of heavy load appliance without danger of timer contact burnout. As an electrical component, it must be installed by a qualified electrician or other competent professional to ensure compliance with relevant local regulations. Up to 16 appliances, with a combined total load of 80 amps, may be plugged into the panel and scheduled synchronously over a 24-hour period. The timer has 96 fifteen-minute on/off segments, and can be set to “timed”, “continuously on” or “continuously off”. A further 2 power outlet sockets, marked “FAN”, are not timed, and have a continuous power supply.

Key selling points:

• Suitable for scheduling appliances with high inductive loads
• Can schedule up to 16 appliances synchronously
• 2 untimed power outlet sockets
• Simple to operate


Technical Specifications:

• 220-240 V AC1
• 50/60 Hz
• Maximum load 80 A
• 16 timed output sockets
• 2 untimed output sockets

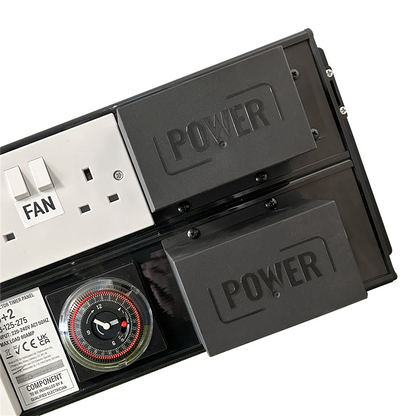

• Timer – 24 hr, 96 x 15-minute segments. Manual setting.


FAQs:
Q: Can I attach a plug lead to this panel and plug it into a mains outlet socket?
A: No. This panel is an electrical component which must be hard-wired by an electrician or other competent person directly to a power distribution unit.
